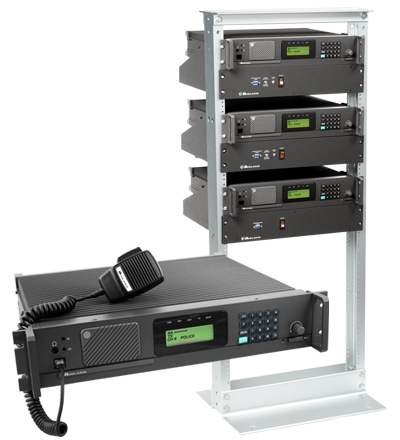

MIDLAND 91-1110
 FEATURES
Project 25 Compliant Up to 110
Watts TX Output Power VHF 136 – 174 MHz High Reliability - Remote Site Operation Reliability Rate
>0.991% Suitable for High RF Noise Environments Programmable by Channel for Digital or Conventional Modulation
or Mix Mode 500 Channel Capacity 100% Duty Cycle Cross Banding Real Time Multi-Mode Operation
<300mA Standby Current Optional DES / AES Encryption
Programmable Analog CTCSS / DCS Tones
Programmable by Channel for Base Station or Repeater Operation Remote Dispatch Optional IP Phone,
and Tone Remote Interface CW ID-Standard Project P25 Common Air Interface Operation Low Maintenance
TX / RX Bar Graph Display Built in Carrier Operated Relay (COR) Time-Out-Timer (TOT) Battery
Backup Options Project 25 Compliant Up to 110 Watts TX Output Power VHF 136
– 174 MHz High Reliability - Remote Site Operation Reliability Rate >0.991% Suitable for High RF
Noise Environments Programmable by Channel for Digital or Conventional Modulation or Mix Mode 500 Channel
Capacity 100% Duty Cycle Cross Banding Real Time Multi-Mode Operation <300mA Standby
Current Optional DES / AES Encryption
Programmable Analog CTCSS / DCS Tones
Programmable
by Channel for Base Station or Repeater Operation Remote Dispatch Optional IP Phone, and Tone Remote Interface
CW ID-Standard Project P25 Common Air Interface Operation Low Maintenance TX / RX Bar
Graph Display Built in Carrier Operated Relay (COR) Time-Out-Timer (TOT) Battery Backup Options
SPECIFICATIONS
| GENERAL SPECIFICATIONS | | Dimensions
(H x W x D) | 18.2" x 3.4" x 14.2" | | Weight | 24 lbs | | Operating Voltage | 12.2 - 15.0 Vdc | | Secondary
Input Power | 120V AC | | Rack or Cabinet Mount | X | | Conventional
or Trunked | Conventional | | Operation Mode | Simplex
/ Duplex / Full Duplex | | EXCITER SPECIFICATIONS | | Frequency
Range | 136 - 174 MHz | | Channel Capacity | 500 | | CTCSS | Programmable per Channel | | DCS | Programmable per Channel | | Channel
Spacing | 12.5 / 20 / 25 / 30 kHz | | Cross Banding | Optional | | VoIP
Interface | Optional | | RECEIVER SPECIFICATIONS | | Sensitivity
(@12db SINAD/Digital 5% BER) | 0.3 µV | | RX Frequency Separation | Full Sub Band | | Selectivity 25 / 12.5 kHz / Digital | 85
dB / 80 dB / 80 dB | | Intermodulation | 85 dB | | Spurious
Image Rejection | 100 dB | | Audio Output | 7.5
W @ 8 Ω | | Frequency Stability | ± 1.5 ppm | | Standby
Current | < 280 mA | | Rx Current | 950
mA | | TRANSMITTER SPECIFICATIONS | | Maximum
Deviation | ± 2.5 @ 12.5 kHz ± 5.0 @ 25 kHz | | RF Power
Output (Continuous) | 5-110 Watts | | TX Bandwidth | Full
Band | | Frequency Response | + 1, to - 3 dB, 300-3000 Hz | | Spurious
/ Harmonics | 80 dB | | FM Hum & Noise | 80
dB | | Audio Distortion | < 2% | | Frequency Stability | ± 1.5 ppm | | Duty Cycle | Continuous | | TX
Current | < 16A |
|
