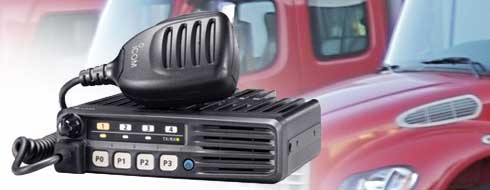

Simple operation for instant communication

The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allow you to customize the radio to suit your needs and convenience.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, multiple 5-Tone

Up to ten 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone.

MDC 1200 compatible

The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)

Enhanced scan features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Remote channel control with optional ACC cable

The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built military rugged

The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Other features

• 4W (typ.) front mounted speaker
• Wide frequency coverage (136-174, 400-470 and 450-512MHz)
• Wide/narrow channel spacing (25, 12.5kHz) programmable
• Microphone hanger action programmable
• Optional DTMF microphone
• Optional voice scrambler unit, UT-109R or UT-110R
• DTMF autodial and optional DTMF decoder, UT-108R
• PC programmable
• Talk around function
• Power-on password function
• Nuisance delete function
• Time-out-timer, lock-out penatly timer

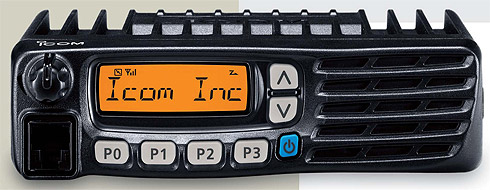

The IC-F5021 series is ideal for small-to-mid sized systems for public safety, large industry to light commercial users. The IC-F5021 series offers multiple signaling, advanced scanning, improved external channel control capability and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.

128 memory channels

128 channels (max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.

Front mounted speaker

4 watts (typ.) front mounted speakers delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operations.

6 programmable buttons

A pair of up/down and P0-P3 function assignable buttons allow you to customize functions to meet specific needs. An independent volume knob offers simple, convenient operation.

MIL grade rugged construction

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5021 series provides reliable operation over the long term in all manners of rugged environments.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The IC-F5-21 series has added CTCSS/DTCS high speed decode and 2-Tone decode accuracy.

MDC 1200 compatible

The following MDC features are available with the built-in MDC signaling.

• PTT ID (TX/RX)
• Radio check (RX)
• Radio stun (RX)
• Radio revive (RX)
• Emergency TX/RX (No ACK)
• 5 alias table (max.)

Multiple 2-tone, multiple 5-tone

Up to ten 2-tone and eight 5-tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

Radio kill, stun and revive

The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporarily locked out until the revive command is received or the unlock password is entered.

Lone worker function

When the radio is not operated for a present period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.

Mode dependent scan

In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel the scanning list automatically changes the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don't have to change the scanning setting.

Tx channel setting and talk back function

The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channels are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.

Wide frequency coverage

The IC-F5021 series covers a wide frequency range in one version (VHF 136–174Mz, UHF 400–470 or 450–512MHz).

Optional unit

The IC-5021 series has a 40–pin option slot for adding an optional unit. Optional voice scrambler units, UT-109R or UT-110R provide secure private conversation. Optional DTMF decoder unit, UT-108R offers DTMF decode capability.

External memory channel control with optional ACC cable

With the optional OPC-1939 D-SUB 15-pin ACC cable, the IC-F5021 series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition sensing function, external PTT, PC command, honk honk, audio output and modulated signal input depending on programming.

Compatible with IC-F3021/F4021 series handheld

The IC-F5021/F6021 series is designed to be a companion to our IC-F3021/F4021 series handheld transceiver. The number of channels and banks, signaling formats, programming software and voice scrambler are compatible. Take advantage of the shared functionality to complete your communications requirements.

Other features

• Wide/narrow (25/12.5kHz) channel spacing
• Embedded ESN
• ±2.5ppm frequency stability
• Microphone hanger action programmable
• 8 DTMF autodial memories
• BIIS 1200 PTT ID transmission
• Power-on password function
• Nuisance delete function
• Time-out-timer, lock-out penalty timer and more

• IDAS™ conventional and IDAS single-site trunking
• Digital/Analog mixed mode operation
• Built-in 2-Tone, 5-Tone, CTCSS and DTCS
• MDC 1200 compatible
• MIL-STD-810 F rugged construction
• 4W (typ.) front mounted speaker

128 channels with 8 zones

Ample 128 channel capacity allows most companies plenty of room to grow. Up to 8 zones lets you group together channels in logical fashion.

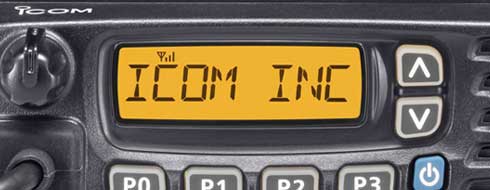

8–character LCD

An 8–character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.

Built military rugged!

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL
standard 810 F.

Compact hand microphone

Select from 5 levels of mic grain, for clearer transmission.

Large programmable buttons

For easy access to often used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time operation.

GPS receiver connection

With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.

Powerful, front-facing speaker

4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle's cabin. Digital modulation adds distinct clarity to received voices.

IDAS™ digital mode operation

The IC-F5121D series provides NXDN™ CAI-based IDAS digital mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.

• PTT ID
• Status
• Radio check
• Call alert
• Emergency (no ACK)
• GPS data (PC and software required to show received position data)
• Individual/Talkgroup list (Max 500)
• RAN (Radio Access Number)
• Stun/kill/revive (RX)
• Remote monitor (RX)
• Digital voice scrambler
• SDM (Short Data Message)

Built-in 2-tone and 5-tone (analog mode)

2-Tone and 5-tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.

Scan features

The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.

MDC 1200 compatible (analog mode)

The following MDC features are available with the built-in MDC signaling.

• PTT ID
• Radio check (RX)
• Emergency (No ACK)
• Stun/Revive (RX)
• 500 alias table (Max.)

Lone worker function

When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.

Other features

• CTCSS/DTCS encode/decoder*
• 8 DTMF autodial memories
• Microphone hanger action programmable
• Optional DTMF microphone (HM-152T)
• PC programmable
• Power-on password function
• Time out timer
• Talk around function
• Nuisance delete function*
• Forced narrow function*
