FEATURES

SPECIFICATIONS

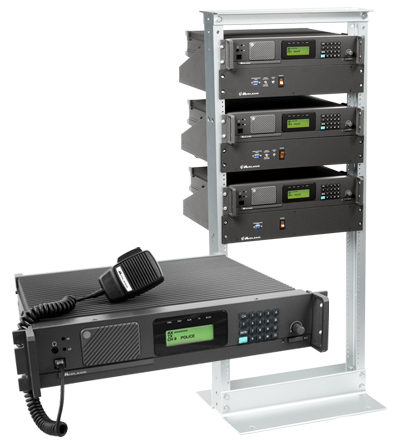

GENERAL SPECIFICATIONS Dimensions (H x W x D) 18.2" x 3.4" x 14.2" Weight 24 lbs Operating Voltage 12.2 - 15.0 Vdc Secondary Input Power 120V AC Rack or Cabinet Mount X Conventional or Trunked Conventional Operation Mode Simplex / Duplex / Full Duplex EXCITER SPECIFICATIONS Frequency Range 136 - 174 MHz Channel Capacity 500 CTCSS Programmable per Channel DCS Programmable per Channel Channel Spacing 12.5 / 20 / 25 / 30 kHz Cross Banding Optional VoIP Interface Optional RECEIVER SPECIFICATIONS Sensitivity (@12db SINAD/Digital 5% BER) 0.3 µV RX Frequency Separation Full Sub Band Selectivity 25 / 12.5 kHz / Digital 85 dB / 80 dB / 80 dB Intermodulation 85 dB Spurious Image Rejection 100 dB Audio Output 7.5 W @ 8 Ω Frequency Stability ± 1.5 ppm Standby Current < 280 mA Rx Current 950 mA TRANSMITTER SPECIFICATIONS Maximum Deviation ± 2.5 @ 12.5 kHz ± 5.0 @ 25 kHz RF Power Output (Continuous) 25-60 Watts TX Bandwidth Full Band Frequency Response + 1, to - 3 dB, 300-3000 Hz Spurious / Harmonics 80 dB FM Hum & Noise 80 dB Audio Distortion < 2% Frequency Stability ± 1.5 ppm Duty Cycle Continuous TX Current < 10A
