P25 conventional and trunking features

Get ready for P25 conventional, P25 trunking and analog conventional all in one radio with the IC-9511HT series!

• P25 VHF Conventional and Trunking
  The IC-F9511HT comes with P25 VHF conventional and trunking capabilities. You can assign individual channels to analog conventional, P25 conventional or P25 trunking, all within one radio.
• Interoperability
  The IC-F9511HT comes with P25 VHF conventional and trunking capabilities. You can assign individual channels to analog conventional, P25 conventional or P25 trunking, all within one radio.
• Digital/Analog mixed mode operation
  The mixed mode operation allows you to detect and receive both analog FM and P25 digital modes and to transmit either mode depending on programming.
• Individual ID and talkgroup ID
  The IC-F9511HT has a 100 individual ID and 250 talkgroup ID memories. Use the display to visually select the person or group you're going to call.
• Optional AES/DES encryption
  The IC-F9511HT provides AES and/or DES encryption for secure conversation with the optional UT-125 AES/DES encryption unit or UT-128 DES encryption unit.
• OTSR (Over-the-Air-Rekeying)
  The IC-F9511HT supports P25 OTAR for changing encryption keys over the air.
• Enhanced Vocoder ready
  Using the DVSI's AMBE+2™ vocoder, the IC-F9511HT is enhanced vocoder ready.

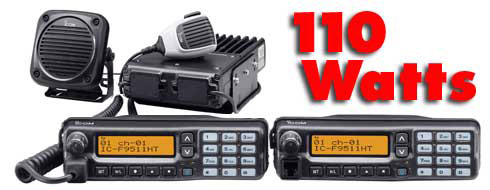

110W of powerful RF output

A full 110W of output power is available for reliable long distance communication. A large heat sink provides effective cooling mechanism allowing continuous duty cycle operation (20% duty cycle transmission).

Compact "letter size" RF unit

While the IC-F9511HT provides 110W of RF output, the RF (main) unit dimensions are only 175 (W) × 60 (H) × 279 (D) mm (6 ⁷⁄₈ × 2 ³⁄₈ × 10 ³¹⁄₃₂ in.), so the RF unit can be fit into a "letter size" console box.

IP54 dust and water resistance

The controller and RF unit have dust-protection and splash resistance, equivalent to IP54.

Separate controller

The controller and speaker are separated from the RF unit for flexible installation. A 5m (16.4ft) separation cable is attached to the controller and optional separation cable length is selectable from 1.9m (6.2ft), 3m (9.8ft) and 8m (26.2ft).

512 memory channels, 128 zones

Up to 512 memory channels can be divided into 128 memory zones, allowing you flexible channel and communication group management. The CTCSS and DTCS encoder and decoder* are also built-in to set up your own talk groups.

Dot matrix, multi-function LCD

With a high contrast dot matrix display, upper and lower case characters can be easily distinguished. The display shows 12 characters by 2 lines. LCD backlight is standard.

Self-grounding mic, HM-148G

The supplied HM-148G self-grounding microphone has a mechanism for self grounding where a grounding wire is no longer required.

9-pin external speaker connector

The IC-F9511HT has a 9-pin speaker connector with a 15W (typ.) audio amplifier for connecting the SP-30 external speaker, horn honk and ignition sensing line, etc,. When an external loud speaker is connected, the RX speaker function allows you to relay the received audio over the loud speaker.

Programmable accessory connector

The IC-F9511HT has a D-SUB 25-pin ACC connector for connecting external devices. It has reserved pins for programming to input operating channels, turn on/off functions and output received audio.

Tactical group function

The tactical group function allows you to copy memory channels to the tactical zone and temporarily regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.

Abundant scanning functions

The dual priority scan monitors two primary channels alternately, while scanning other channels. The mode dependent scan function automatically changes the scan list according to the operating channel setting. The talk back function with timer beep, TX channel and cancel channel settings allow you to preset the transmission channel when you push the PTT button during a scanning operation or cancel the scanning.

Radio stun/kill and Power-on password function

The radio stun/kill function* disables a lost or stolen radio over the air, eliminating security threats from undesired listeners. The power-on password prevents unauthorized people from turning on the radio.
* P25 digital mode only.

Optional external speaker SP-30

Newly designed external speaker, SP-30 offers 15W* (typ.) of high level audio with the IC-F9511HT for improved operation in noisy environments.
*Rated input of the SP-30 is 20W

Other features

• Wide frequency coverage (136 - 174 MHz)
• FM wide/narrow channel spacing*
• Built-in audio compander*
• Built-in inversion type voice scrambler*
• NTIA VHF specification complaint
• Talk around function
• DTMF autodial*
• Microphone hanger action (On hook scan and off hook monitor)
• 2-Tone encoder and decoder* and MDC 1200 compatible* (Available in future)
  *Analog mode only
