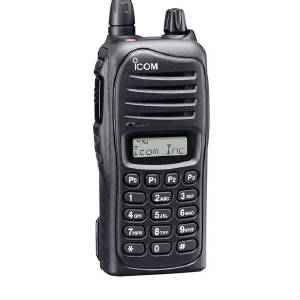

IC-F3021 AND 4021 HANDHELD RADIO


SPECIFICATIONS

OPTIONS

  • When You Need More Than a Basic Radio

Only Icom quality can offer this simple to use but versatile rich featured radio. In this compact light weight body, many attractive features such as multiple signalings, large capacity Lithium-Ion battery and wide frequency coverage are built-in. This rugged handheld easily exceeds your expectations with reliable performance and communication quality.

Compact lightweight body

The rounded compact* design fits comfortably in your palm and is light-weight** for carrying around all day. The large size programmable buttons have ample button-pitch to allow blind touch operation.
* 53(W)×120(H)×36.9(D) mm; 23/32× 423/32×17/16 in
** 296g; 10.4oz including BP-232N

IP54 dust-protection and splash resistance

The IC-F3021 series meets IP54 requirements for dust-protection and splash resistance. The aluminum die-cast chassis is the basis for this rugged construction, allowing long-life usage in various environments.

128 memory channels
and button control memory channel

The IC-F3021 series has 128 memory channels with 8 zones. Memory channel selection can be made easily with the up/down buttons laid out below the PTT button.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone

Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

  • Beep sound
  • Answer back
  • Scan
  • Bell icon
  • Radio stun/kill

Lithium-Ion battery standard

Supplied 2000mAh Li-Ion battery pack, BP- 232N, provides 15.5 hours* of operating time. Li-Ion batteries have virtually no memory issues and allows you flexible charging.
* Typical operation; Tx:Rx:Standby=5:5:90, power save on

Lone worker function

When the radio is not operated for a preset period, the radio sounds a beep and requires you to push any button. If the radio is not operated for a preset time, an emergency signal automatically transmits and informs your co-worker that something may have happened to the individual worker.

Mode dependent scan

In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel, the scanning list automatically changes to the list set for that channel. It is convenient when you move to a different operating area and change an operating channel, you don’t have to change the scanning setting.

MDC 1200 compatible

The following MDC features are available with the built-in MDC signaling.

  • PTT ID (Tx/Rx)
  • Radio check (Rx)
  • Emergency (Tx/Rx)
  • Stun/revive (Rx)

Optional board

The IC-F3021 series has a 40-pin expansion socket for adding an optional board. A voice scrambler provides secure conversation and the DTMF decoder features has ANI (Automatic Number Identification) capability, depending on the installed board.

Optional VOX headset

With one of Icom’s optional headsets and PTT/VOX unit, the IC-F3021 series offers hands-free operation.

Other features

  • 2 step power saver
  • Wide frequency coverage
  • 8 DTMF autodial memories
  • Surveillance function temporarily turns off the LED backlight and beep sound
  • Optional man down unit, UT-124R
  • Normal and priority scan
  • Nuisance delete function temporarily deletes a channel from the scanning list
  • TOT (Time-Out-Timer) function and lock out penalty timer
  • Low battery beep function

PRICE Trickle charge $272.00
PRICE Rapid charge $287.00
